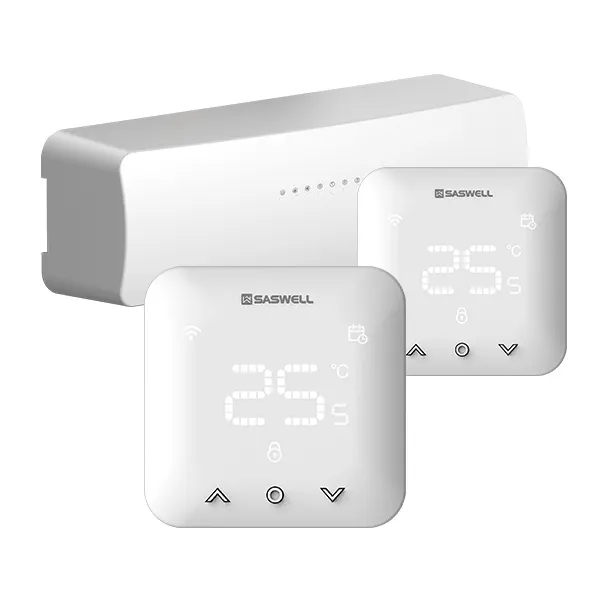

WiFi Heat Pump Controller Kit, 230V, Auto Switching Between Heating & Cooling for Smart HVAC Systems SAS931XWCH-XT-WIFI(TY)

WiFi Heat Pump Controller Kit, 230V, Auto Switching Between Heating & Cooling for Smart HVAC Systems SAS931XWCH-XT-WIFI(TY)

Experience the future of temperature control with our WiFi Heat Pump Controller Kit. This advanced kit features 230V power compatibility and automatic switching between heating and cooling, providing a perfect climate all year round. Its WiFi capabilities allow you to manage your system remotely, from anywhere, making it ideal for homeowners and businesses looking for a smarter, more efficient way to control their HVAC systems. Enjoy seamless integration with your existing setup and maximize your energy savings with this innovative solution.

Features:

Meets cooling control requirements for 95% of common heat pump systems.
Covers heating control needs for wall-mounted boiler and water-based underfloor heating systems.
12V power-line communication technology, reducing wiring costs.
Magnetic panel design for easy installation and removal.
App-based room temperature control is possible with the main controller connected to the network.

Specification:

Wiring control centre (SCU211CH-BUS)
Power source: 100-240VAC 50 / 60Hz (maximum current 10A)
Storage environment temperature and humidity: -10 ~ 60°C, 0 ~ 90% RH (non-condensing)
Working environment temperature and humidity: 0 ~ 50 °C, 0 ~ 80% RH (non-condensing)
Color: White
Size: 298 X 88 X 66mm

Master [SAS931XWCH-0-BUS-WIFI(TY)] / Slave [SAS931XWCH-0-BUS-S]
Power supply and signal input: DC12 ~ 18V carrier non-polarity input (power supply wiring control centre, maximum current 100mA)
Storage environment temperature and humidity: -10 ~ 60°C, 0 ~ 90% RH (non-condensing)
Working environment temperature and humidity: 0 ~ 50°C, 0 ~ 80% RH (non-condensing)
Temperature display range: 0 ~ 50°C
Display accuracy: 0.1°C
Size: 86x86x13mm
Protection level: IP21
WIFI antenna emission frequency(master controller): 2.4GMHz
WIFI wireless transmission distance(master controller): 60M in the open area
