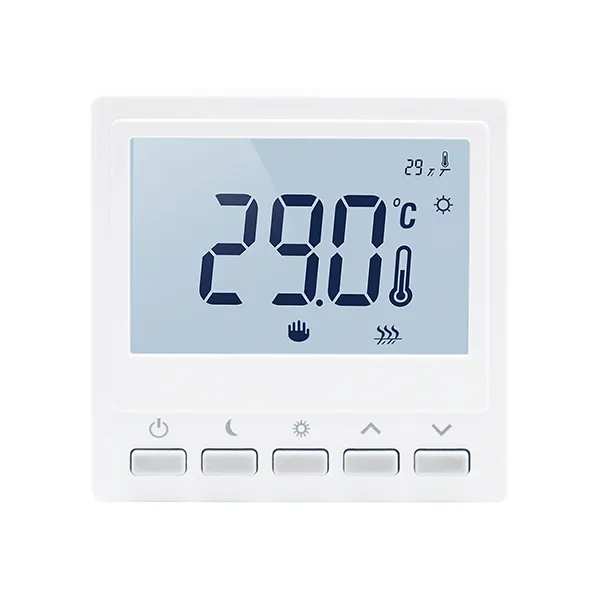

The Tuya Smart WiFi Underfloor Heating Thermostat makes managing your floor heating easier and more efficient. Whether you’re at home or in the office, this programmable thermostat allows you to control the temperature remotely via your smartphone. With a user-friendly interface and precise temperature settings, you can create the perfect environment every day. Save energy, reduce heating costs, and enjoy consistent warmth with just a few taps.
Tuya Smart WiFi Underfloor Heating Thermostat – Programmable Floor Heating Control for Home & Office SAS961WHL
The Tuya Smart WiFi Underfloor Heating Thermostat makes managing your floor heating easier and more efficient. Whether you’re at home or in the office, this programmable thermostat allows you to control the temperature remotely via your smartphone. With a user-friendly interface and precise temperature settings, you can create the perfect environment every day. Save energy, reduce heating costs, and enjoy consistent warmth with just a few taps.
Features:
The SAS961WHL series is a programmable thermostat designed for heating (hydronic) systems, used to control water heating system valves or wall-mounted boilers.
SAS961WHL-7: 3(2)A active output for water valve or pump
SAS961WHL-7W: 3(2)A active output for water valve or pump, with 3(2)A passive relay output
SAS961WHL-7W-WIFI: 3(2)A active output for water valve or pump, with 3(2)A passive relay output, and remote control via smartphone
3.1-inch Large Display Screen
Simultaneous Control of Valves and Wall-mounted Boilers
Permanent Memory Function in Case of Power Loss
Temperature Calibration Function
Four Temperature Control Modes Available
7-Day Independent Programming Control
Specification:
Power Supply: 100-240VAC 50/60Hz
Maximum Load Current: 3(2)A/250VAC
Room Temperature Control Range: 5°C – 35°C
Temperature Display Accuracy: 0.1°C
Operating Temperature Range: 0°C – 50°C
Storage Temperature Range: -10°C – 60°C
Dimensions: 86mm x 86mm x 12mm
WiFi Communication Protocol: IP/TCP, MQTT
WiFi Frequency: 2.412GHz – 2.484GHz

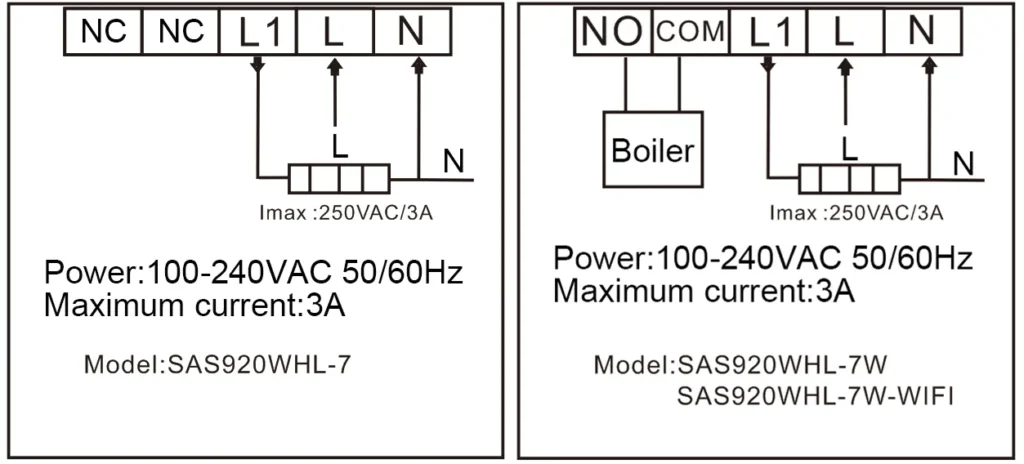

Wiring diagram:
