Dual System Smart Thermostat for DX/FCU HVAC Units – WiFi Enabled, Energy Efficient Control T29MTW
Looking for a smart way to control your HVAC system? Our Dual System Smart Thermostat is designed specifically for DX and FCU units, providing seamless, WiFi-enabled operation that allows you to adjust your temperature anytime, anywhere. Featuring energy-efficient control, it helps reduce power consumption while ensuring optimal comfort. Ideal for both residential and commercial use, this thermostat delivers precision and flexibility—enhancing your HVAC system’s performance and cutting down on energy costs.
Features:
Big screen and touch key for easy operation
7 days programmable
Wall mount to easy hanging on wall
Voice control and remote control by TuyaSmart app
Pluggable installation
3H-2C,2H-1C Heat pump
Specification:
Power source: 18-30VAC 50/60Hz
IP rating: IP21
Temperature setting range: 41°F~95°F
Temperature setting accuracy: 1°F
Temperature display range: 32°F~122°F
Temperature accuracy: 0.1°F
Operation temperature range: 32°F~122°F
Shipping & storage temperature:14°F～140°F
Output: Relay Load Imax 24V/(1A)
Wifi Communication protocol: TCP/IP,MQTT
Wifi Frequency: 2.412GHz-2.4848GHz

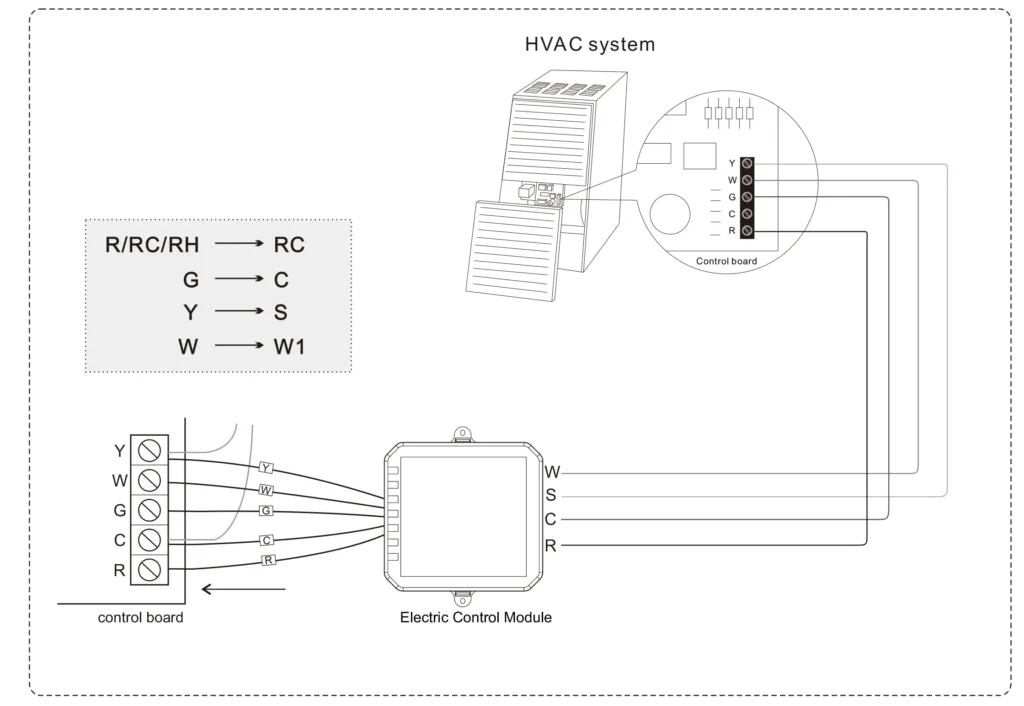

Wiring diagram:
A. Confirm whether the wiring is correct
1. RC/RH need to be connected together to enable W1 and W2 heating output.
2. C/RC is the 24V AC terminal of the power supply.
3. Y1/Y2 is the terminal for cooling equipment.
4. W1/W2 is the terminal for heating equipment .
5. G is the fan terminal, S is the common terminal line of Y1 and G .
6. AC+/AC- is auxiliary air equipment (such as ventilator, humidifier/dehumidifier).
7.OB is a four-way valve terminal.
8.RT+/RT- is an external sensor.
B. Different device configuration requires mode selection, long press the menu button in
the OFF state to enter the parameter mode setting.
Note: The following parameters are separate control equipment for single cold source and single heat source.
CO1: Single stage cooling (Y1)
CO2: 1 stage cooling(Y1) , 2 stage cooling (Y2)
HE1: Single stage heating (W1)
HE2: 1/2 stage heating (W1/W2)
HC1: cooling (Y1) + heating (W1)
HC2: 1/2 stage cooling (Y1/Y2) + 1/2 stage heating (W1/W2)
Note: The following is the control of compressor or heat pump host + auxiliary heating equipment.
Compressor/heat pump: integrates cold and heat sources to realize cooling and heating.
Auxiliary heating: auxiliary heating equipment, gas heating, electric heating and air conditioning heating.
HP1: 1 pcs heat pump (Y1) + 1 pcs auxiliary heat (W1)
HP2: 2 pcs compressor or 2-speed compressor heat pump (Y1/Y2), +1 pcs auxiliary heat (W1)
HPA: 2 pcs compressor or 2-speed compressor heat pump (Y1/Y2), +2 pcs auxiliary heat (W1/W2)
Factory default HC1: cooling (Y1) + heating (W1)
